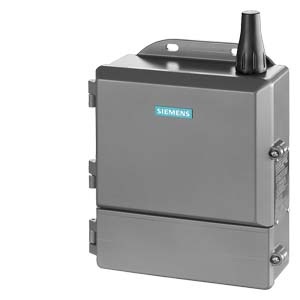

iewsn pa linkIE/WSN-PA LINK

Description

The IE/WSN-PA LINK is a WirelessHART gateway for connecting a WirelessHART network to a higher-level system, e.g. a process control system or maintenance station. The integrated network manager allows easy configuration
of WirelessHART networks as well as optimization of the network performance and security settings.

Details

The IE/WSN-PA LINK connects wireless HART field devices to Industrial Ethernet via a radio link. The IE/WSN-PA LINK supports the WirelessHART standard at the radio end and TCP/IP and Modbus TCP communication at the Ethernet end.
The IE/WSN-PA LINK thus allows wireless diagnostics, maintenance, and process monitoring.

G IK10 EN 30222j-436

Features

  • High degree of security for wireless data communication
  • Open TCP/IP communication
  • Open standardized user interface through HART
  • OPC-Server der HART Communication Foundation
  • Easy configuring and monitoring of networks with web interface
  • Connection of up to 100 WirelessHART devices
  • Easy connection to SIMATIC PCS 7, SIMATIC S7, and host systems from other manufacturers
  • Optional: remote antenna
  • Installation in hazardous areas Zone 2 is possible
  • Enclosure with IP65 degree of protection

Benefits

  • Numerous possible solutions for connecting field devices in the process industry due to alternative or supplemental WirelessHART communication
  • Reliable data transmission due to meshed systems
  • Obstructions in the transmission path can be bypassed thanks to the self-organizational network with alternative paths
  • Reduced cabling costs in the case of difficult installation conditions, e.g. when field devices are at locations in the plant that are difficult to access or are only required temporarily
  • Sensors can be added later to improve process monitoring and for implementing maintenance tasks
  • Existing wireless measuring transducers can be subsequently integrated into maintenance and diagnostics systems
  • Limited monitoring using web services and the integrated web server of the IE/WSN-PA LINK is possible without add-on software
