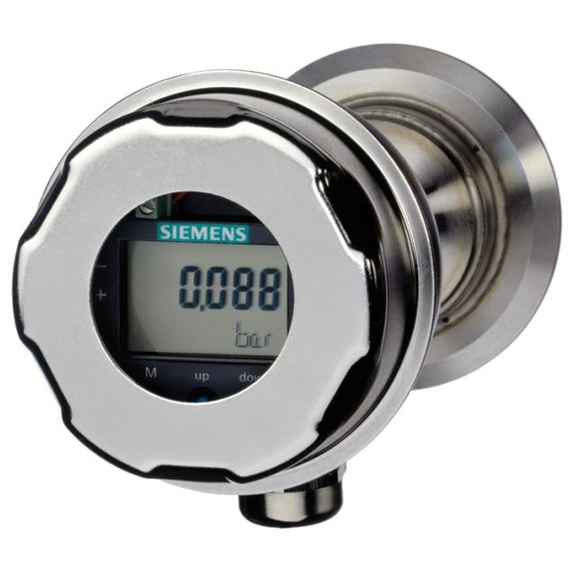

sitrans p300SITRANS P300

Description

The SITRANS P 300 offers the measuring precision and ruggedness already known from the SITRANS P DSIII.
Its stainless steel housing with laser-printed nameplate, together with a wide range of hygienic process connections, mean that it is highly suitable for use in the food & beverages industry as well as for pharmaceutical processes.
With a maximum deviation in measurement of 0.075% and the proven operating philosophy, it fits seamlessly into the SITRANS P family.



Detail

Accuracy ≤ 0,075%
Long term stability ≤ 0.25% / 60 months
Measuring range 0 - 10 mbar (0 - 4 inchH2O) to
0 - 400 bar (0 - 5800 psi)



Benefits

  • With hygiene (EHEDG, 3A), material and calibration certificates eminently suited to the food and beverage and pharmaceutical industry
  • Especially suitable for degrees of protection to IP68 and IP69K, CIP/SIP cleaning, and high-viscosity measuring process
  • Measurement cells for gauge and absolute pressure
  • Measurement cells with flush mounted diaphragm
  • Extended simulations and diagnostic functions Parameters can easy set via three local push buttons and LCD display, HART or PROFIBUS PA profile 3.0 communication.
